AJEBProjectCivil3DStyles error message

Support Portal  »  Knowledgebase  »  Viewing Article

  Print

I'm getting a message stating AJEBProjectCivil3DStyles when using the roads tab and clicking on the active drawing, vertical grading or network strings button.



c83805efc3e27ead1959302941227bf80b474b2abbbddc53b20c9af16fdcfd126a5ebea333de0d61?t=00a63dcec8f590abdc7a4f081ecff0b3





the AJEBProjectCivil3DStyles issue usually arises if the project/drawing has been loaded into CSD V25 or higher and then opened in an older version of the software.


Please check the version of CSD and if necessary update
The latest Civil Site Design downloads are found here: https://download.civilsurveyapplications.com/civil-site-design/





If you are unable to upgrade:

open the project and display the CSD Toolspace.

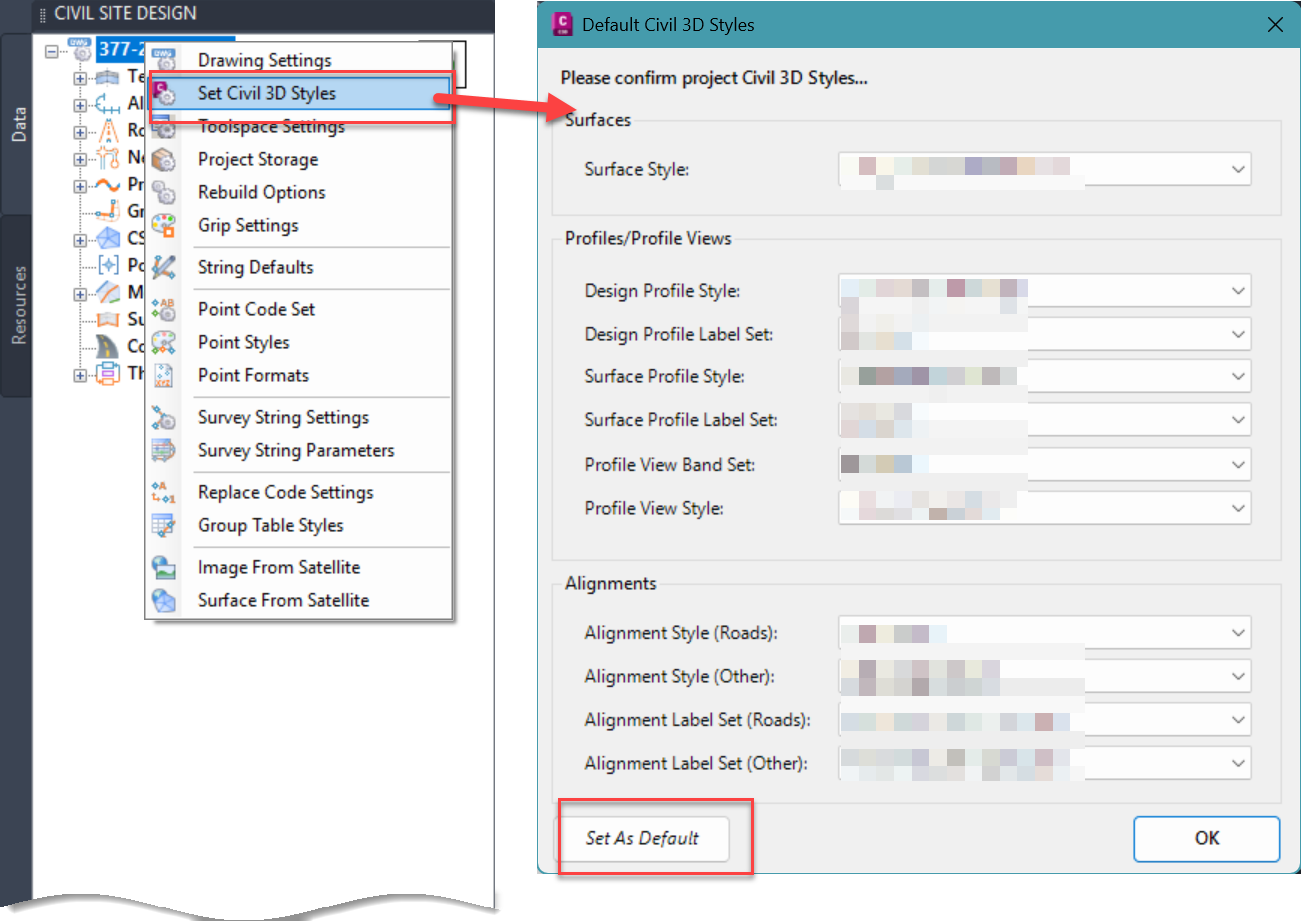

On the DATA tab, right click the drawing name and click Set Civil 3D Styles

Click on Set as Default and then close the styles window

eaa7a3fc25645811dfb2ed513f5aa6e3b469fc22a2ddd6b4e7964396a2119f3f6e037a16f5f78bb9?t=8d10341a131703333db24872bf227c85
